Passive Europa

Resistance to wind load
test pressure (Pa)
1
(400)
2
(800)
3
(1200)
4
(1600)
5
(2000)
Exxxx
(>2000)
Wind Resistance
Frame deflection
A
(< 1/150)
B
(< 1/200)
C
(< 1/300)
Water tightness
clasification (A)
test pressure (Pa)
1 A
(0)
2A
(50)
3A
(100)
4A
(150)
5A
(200)
6A
(250)
7A
(300)
8A
(450)
9A
(600)
E1200
(>600)
Air Permability
maximum test
presure, (Pa)
air permability at 100 Pa
(46 km / h) (m3/ H · m2)
1
(150)
(56 km/h)
≤ 50
2
(300)
(80 km/h)
≤ 27
3
(600)
(113 km/h)
≤ 9
4
(600)
(113 km/h)
≤ 3
U value , W/m2K
Glass Specification
0,79* 0,66**
* The value is tested for a 1230 x 1480 single opening window according to EN ISO 10077-1 with 4 Low-E/16/4/16/4 Low-E, standard argon, Ug=0.7, thickness 44 mm;
** THE VALUE IS TESTED FOR A 1230 X 1480 SINGLE OPENING WINDOW ACCORDING TO EN ISO 10077-1 WITH 4 LOW-E/18/4/18/4 LOW-E, STANDARD ARGON, UG=0.5, THICKNESS 48MM;

Product Description

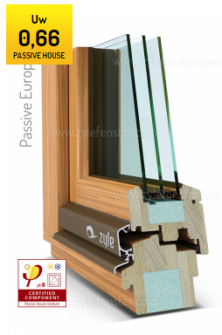

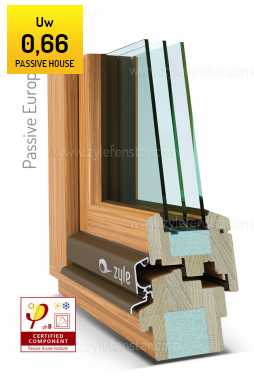

The Europa PASSIVE window line achieves the highest standard for building energy-efficiency and meets German Passivhaus Certification. A robust system of three layers containing a system of polyurethane and natural wood gives a 0,79 U value for a homes that require the lowest Energy consumption.
