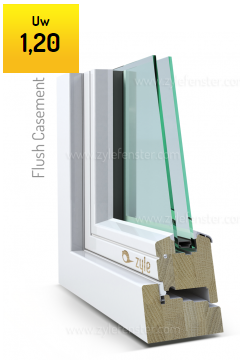

Flush Casement



Resistance to wind load
test pressure (Pa)
1
(400)
2
(800)
3
(1200)
4
(1600)
5
(2000)
Exxxx
(>2000)
Wind Resistance
Frame deflection
A
(< 1/150)
B
(< 1/200)
C
(< 1/300)
Water tightness
clasification (A)
test pressure (Pa)
1 A
(0)
2A
(50)
3A
(100)
4A
(150)
5A
(200)
6A
(250)
7A
(300)
8A
(450)
9A
(600)
E900
(>600)
Air Permability
maximum test
presure, (Pa)
air permability at 100 Pa
(46 km / h) (m3/ H · m2)
1
(150)
(56 km/h)
≤ 50
2
(300)
(80 km/h)
≤ 27
3
(600)
(113 km/h)
≤ 9
4
(600)
(113 km/h)
≤ 3
U value , W/m2K
Glass Specification
1,30* 1,20** 1,00***
* The value is tested for a 1230 x 1480 single opening window according to EN ISO 10077-1 with 4 /16/ 4 Low-E, standard argon, Ug=1,1, thickness 24 Mm;
** THE VALUE IS TESTED FOR A 1230 X 1480 SINGLE OPENING WINDOW ACCORDING TO EN ISO 10077-1 WITH 4 /16/ 4 SOFT LOW-E, STANDARD ARGON, UG=1,0, THICKNESS 24 MM;
 *** THE VALUE IS TESTED FOR A 1230 X 1480 SINGLE OPENING WINDOW ACCORDING TO EN ISO 10077-1 WITH 4 /10/4/10/4 LOW-E, STANDARD ARGON, UG=0,8, THICKNESS 32 MM;

Product Description

Flush Casement windows come in SIDE HUNG, TOP HUNG or REVERSIBLE styles.
– High quality knot free finger jointed laminated Redwood, Hardwood or Accoya.
– Our casement windows are fully tested and accredited to BS6375 Part 1 and Part 2, proving their outstanding weather resistance.
– Our Casement windows have been independently tested to BS 7950:1997 for enhanced security.
